I would like to create veins on the dick and for that I bought the addon "TextureWizard".
I have followed your explanations and I have veins on cock but only inside the "RENDER" room.
But my wish is obtain veins on the 3D model in order to export it (in obj, stl, etc...).
How to do that?
If is not possible with "Texture Wizard", which addon is capable to create 3D veins ?
Thank you and good Halloween :)
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,522
Thanks: 1284 times
Was thanked: 1468 time(s) in 722 post(s)
|
We can't create HD morphs for items sold outside DAZ store, so DK & FTL veins are created with displacement maps for DS renders.
You can convert displacement maps in actual geometry in Blender. The workflow is:
-Directly export the geometry from DS as an obj (hide in the viewport all you don't want to export) File->export and select wavefront obj. Before that, make sure the dick UVs is set to 'Dicktator UVs v2' (surfaces tab) on all surfaces;
-Import in Blender. Use the home button to center the view. Increase the resolution: (blender 2.8) Edit mode (tab) -> right click -> subdivide or (best)adding a subd modifier;

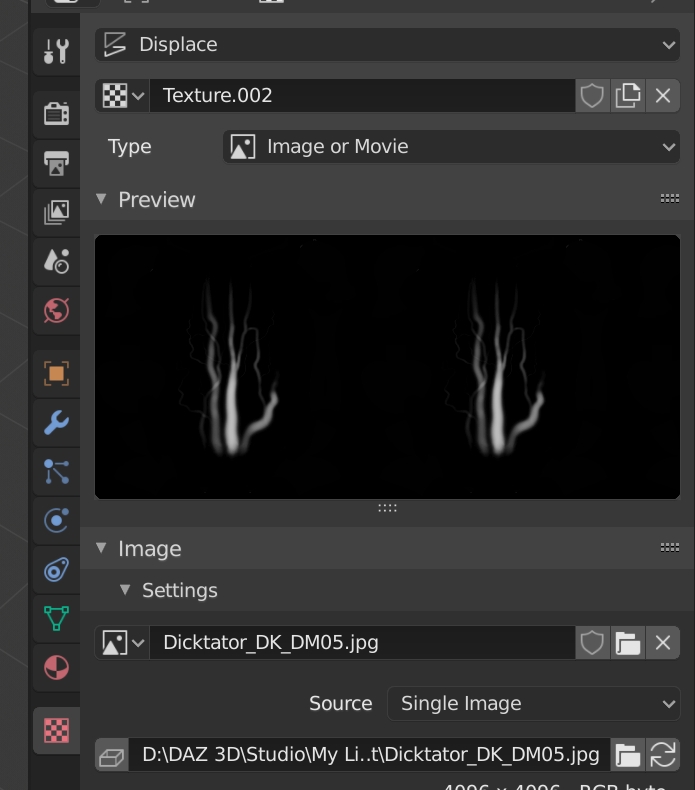

-Load a displacement map in the texture tab on the right from this folder: Runtime\Textures\Meipex\M_Dicktalicious\Genitalia_v3\Dicktator\Displacement;
-Add a displace modifier (tab with a wrench on the right) and select the map you loaded. Set mapping to UV and adjust the strenght.
-Export (fle->export->wavefront obj with the Apply modifier checked in the options panel)
See pics attached Meipe attached the following image(s):
|
