This is a small tutorial following a question asked by Ruiner66. It show you what to do if you are using Headlights with an unsupportd morph. The tutorial is for G3F, but it's the same for G8F.

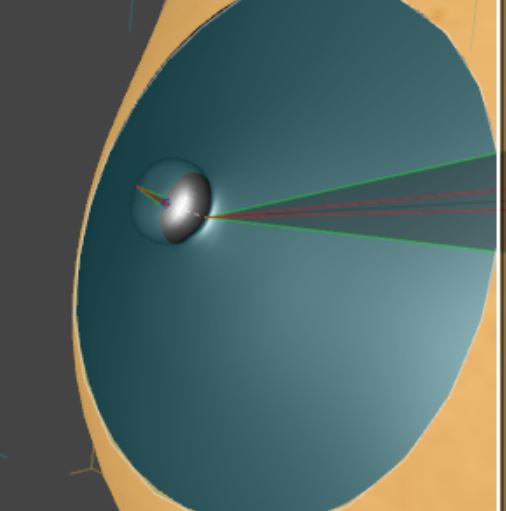

So, we will fix the Leg Length morphs. As you can see it moves upward all the bones, but not the nipple one:
Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
2/8

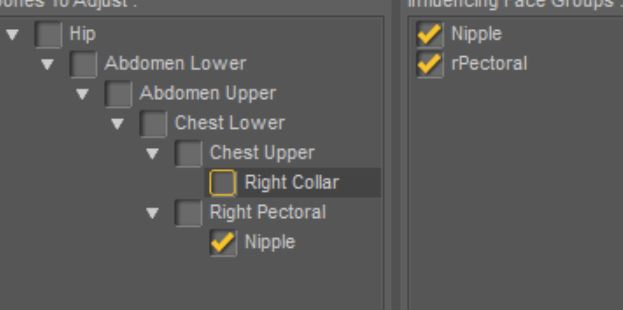

Headlights R or L selected in the scene. Tool settings, joint editor tab. Right-click in the scene, edit->adjust rigging to shape
Select only Nipple in bones to adjust, accept.
Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
3/8

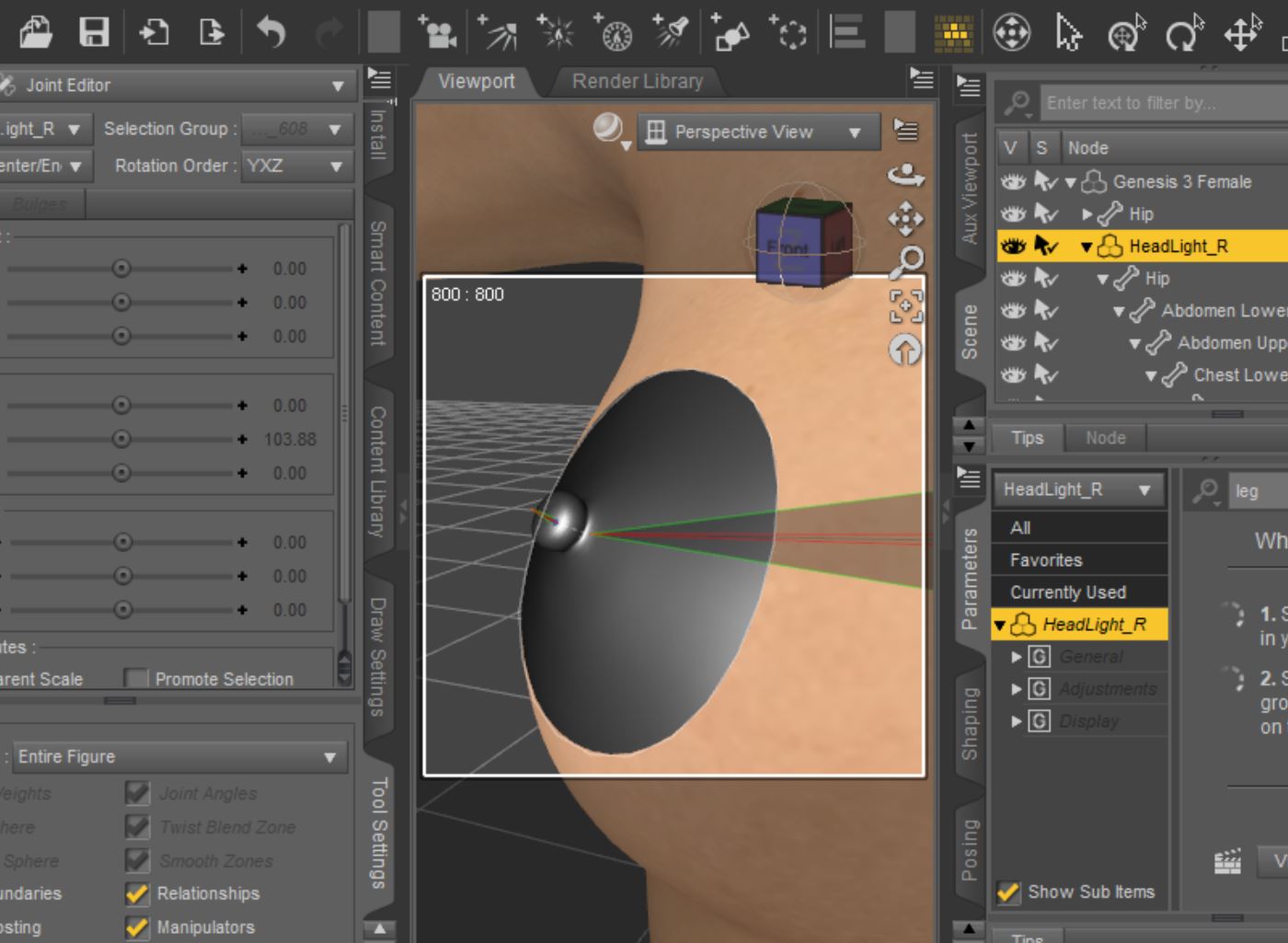

Now the nipple bone is fixed. You can manualy adjust it a little if you want: Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
4/8

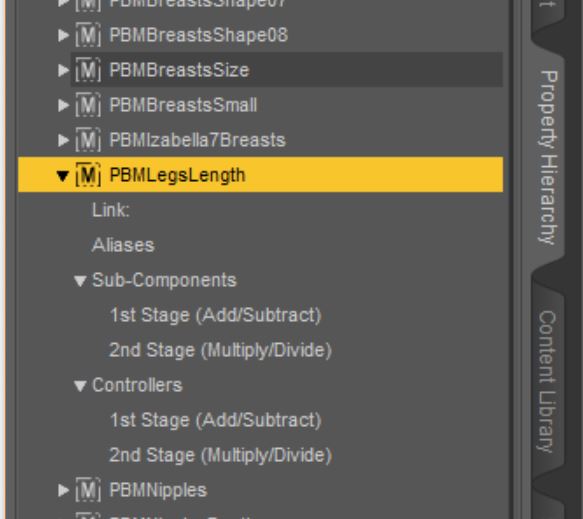

Property Hierarchy tab, choose the Headlight graft and the bone that has been created by DS. Right-click on it, ERC freeze: Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
5/8

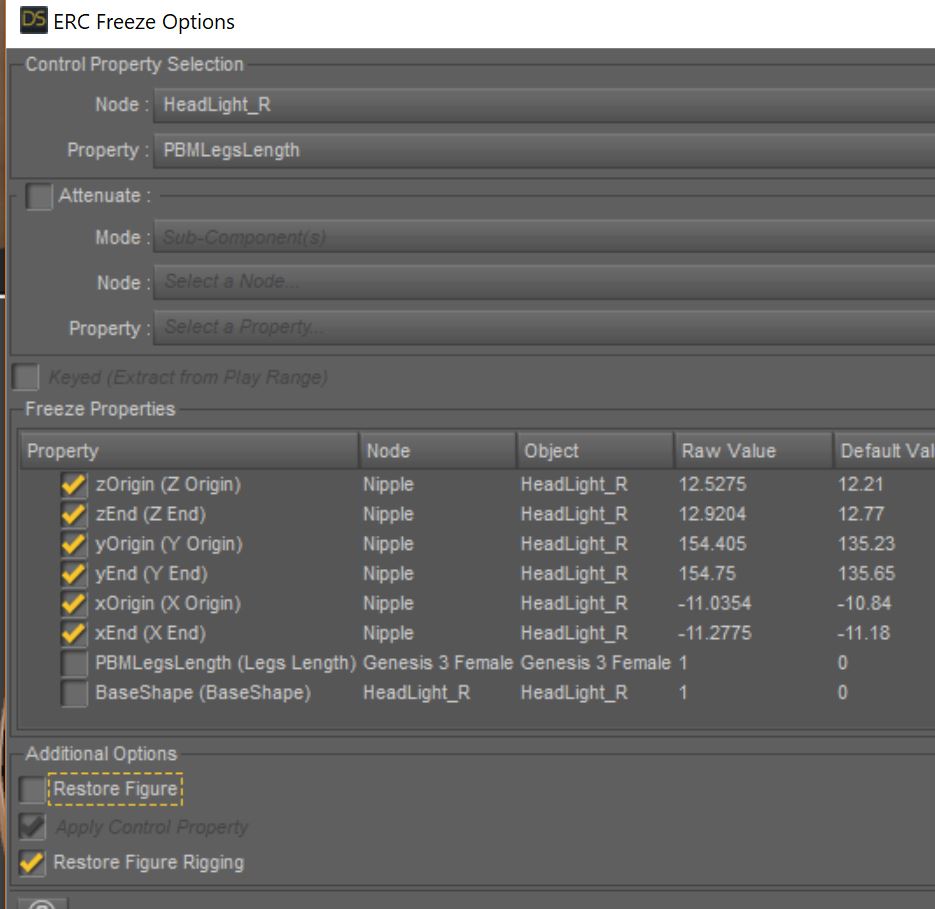

Leave checked the properties related to the nipple bone. Uncheck restore figure, accept: Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
6/8

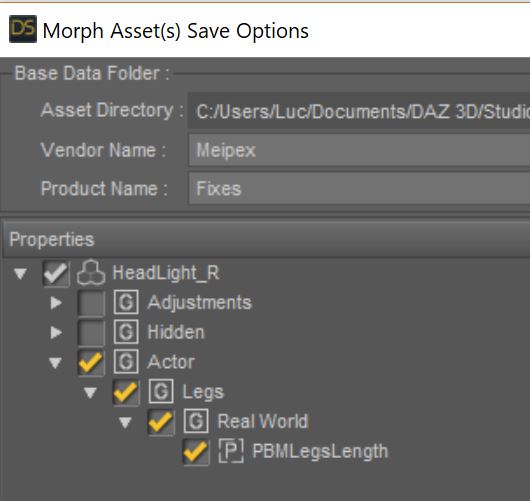

[With the graft selected in the scene] File->Save as->Support Asset-> Morph asset... then select your New supported morph. Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
7/8

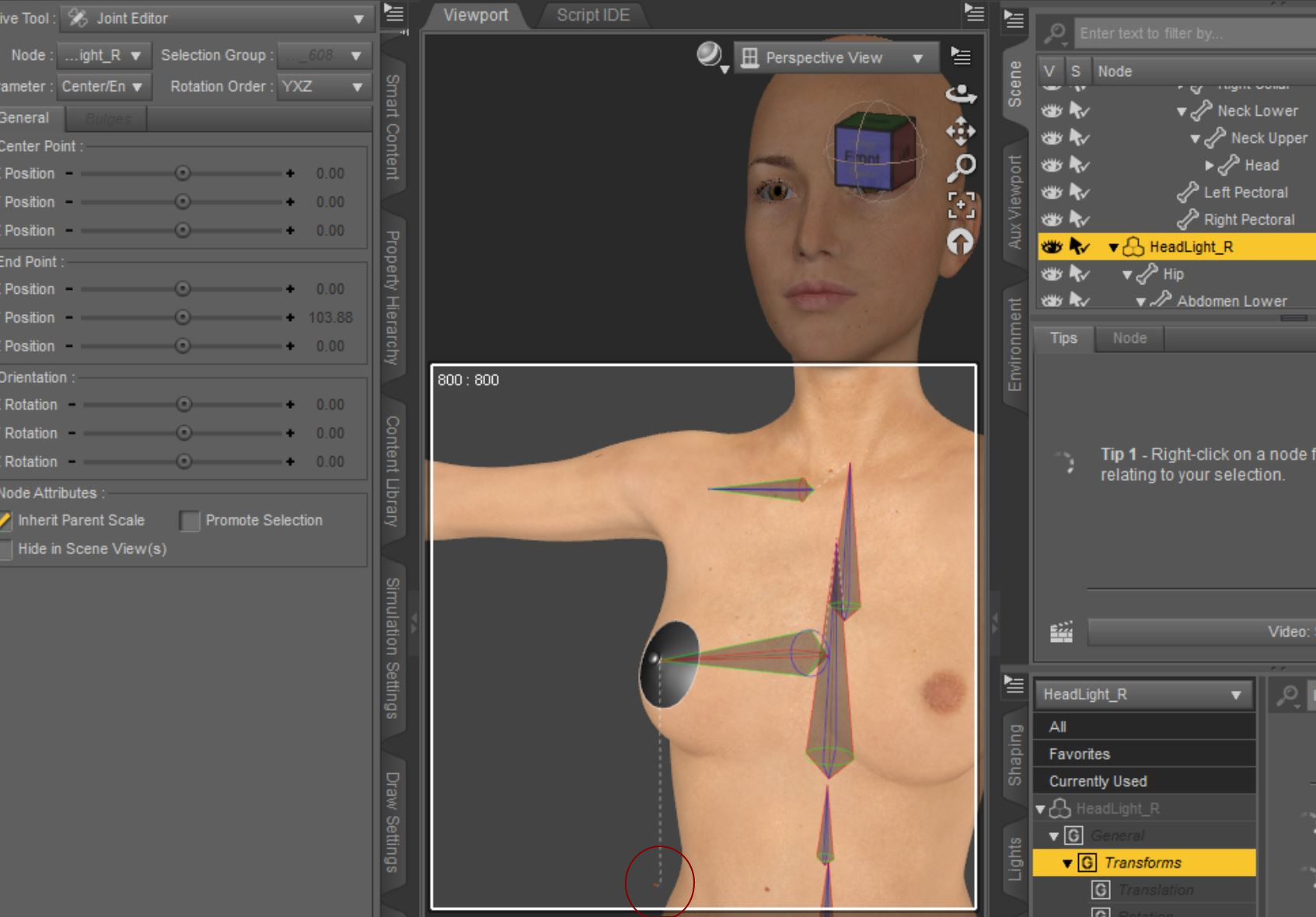

Done! Next time your morph is dialed, the nipple bone will follow: Meipe attached the following image(s):
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 1,606
Thanks: 1347 times
Was thanked: 1523 time(s) in 757 post(s)
|
8/8
This fix can be applied with any graft without a rigidity map. When adjusting rigging to shape, it is best to fix only the bugged bones, and using as reference only the mesh around them.
|
|
|
|
|
|
Rank: Advanced Member
Joined: 9/15/2012(UTC)
Posts: 628
Thanks: 305 times
Was thanked: 403 time(s) in 258 post(s)
|
This technique also works well with breast morphs that move the nipple down or to the side. Thanks Meipe!
|
 1 user thanked matt for this useful post.
|
|
|
|
Rank: Newbie
Joined: 3/12/2015(UTC)
Posts: 8
|
I am trying to adjust headlight shell (left and right) to g8f non standard breat morph shape - They seem not to work when I do the following:-
edit->adjust rigging to shape - Select only Nipple in bones to adjust
Do I chack also adjust (1) center points and (2) end points and (3) orientation?
Where are the grafts parameters?
What am I doing wrong.
|
|
|
|
|
|
